Configuring settings for multiple sensors simultaneously

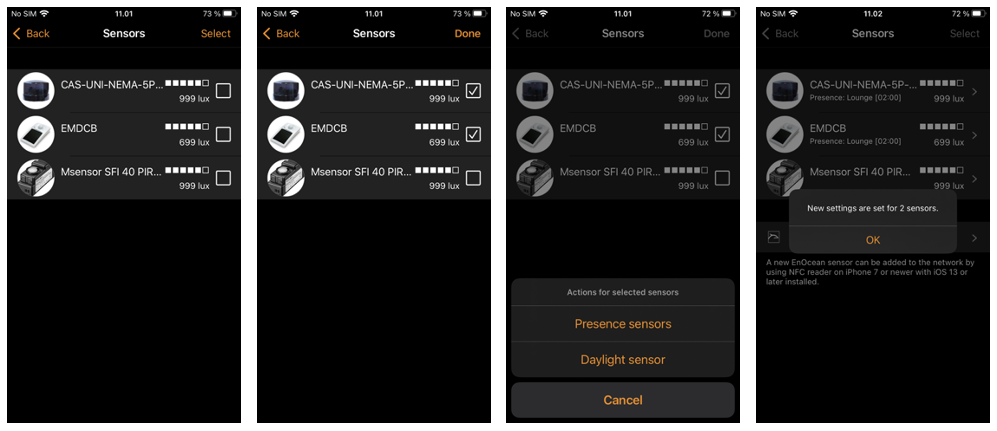

To set certain settings for multiple sensors simultaneously push Select in the sensors view and choose all required sensor (tick box). Push Done when all required sensors are selected. Then select whether to configure presence sensor settings or daylight sensor settings.

• For presence sensors you can set the sensor operational Mode and the scenes to activate.
• For daylight sensors you can adjust the Sensitivity and Tolerance settings (simultaneous Calibration of multiple sensors is not possible).

Depending on your selection you will be taken to the appropriate configuration view. Set the parameters as desired. Push Done when finished and you will see a conformation message of how many sensors were configured. Push OK to continue.

Note:

• Always, Restart the network (More, Network setup, Configure all luminaires, Restart Network) if you make changes to scene configuration after it has already been assigned to a sensor. This ensures that the sensor receives the new scene configuration.
